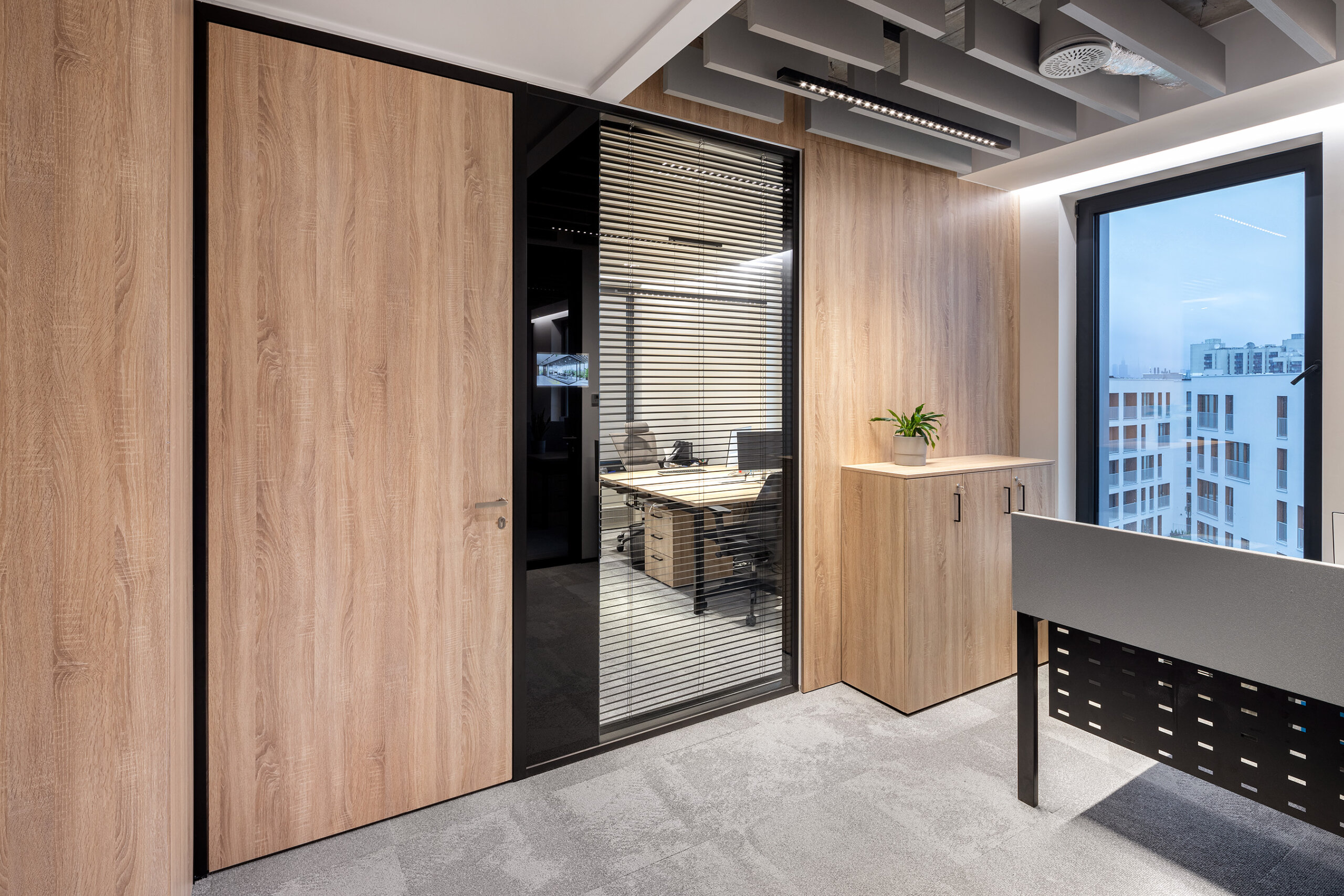

Wooden door
High sound insulation parameters and maximum privacy
Possibility to adapt to other interior elements. Guaranteed high sound insulation parameters and privacy granted by non-transparent doors.
Acoustic insulation Rw from 33 dB to 41 dB
Full visual and systemic compatibility of GSW Office
Download the product card
Select the product version
Wooden door
Product features
| Approvals, tests etc. |
|
| Durability | Class 6 |
| Type of filling | full / glazed |
| Max height (mm) | 3000 |
| Max width (mm) | 1000 |
| Acoustic insulation | RW = 33 ÷ 41 dB / RA1 = 32 ÷ 40 dB |
| Material / finish | Veneer / Laminate / Varnish |
| Glass | RW [dB] | C [dB] | RA1 [dB] | RA1R [dB] |
|---|---|---|---|---|
| Glass 34 mm, VSG 44.1 | 33 | -1 | 32 | 30 |
| Glass 34 mm, VSG 55.2 Silence | 37 | -1 | 36 | 34 |
| Solid 34 mm, Homalight D | 29 | -4 | 25 | 23 |
| Solid 48 mm, Sauerland 33 VL | 38 | -1 | 37 | 35 |
| Solid 48 mm Alu, Sauerland 33 VL | 39 | -1 | 38 | 36 |
| Solid 48 mm, Sauerland 39S3R | 41 | -1 | 40 | 38 |
| test | test |
|---|---|
| test | test |
Alu E2/C-0 silver anod.
Alu E2/C-35 black anod.
Alu E2 inox anod. polished
Alu RAL/special anod.
Alu RAL
Characteristics
The traditional elegance of wood perfectly fits both glass walls and other interior design elements. Surface finishing available on request with veneer, laminate or varnish.
