Glass Door
Greatest transparency, good acoustic parameters
A light and delicate form, where the surface creates a uniform continuity effect in glass walls.
Acoustic insulation Rw from 24 to 33 dB
Full visual and systemic compatibility of GSW Office
Smoke-tight version available
Download the product card
Select the product version
Glass Door
Glass Door
smoke tightness
Product features
| Approvals, tests etc. |
|
| Durability | Class 6 |
| Type of glass | ESG 8, 10 |
| Max height (mm) | 2600 |
| Max leaf width (mm) | 1000 |
| Acoustic insulation | RW = 24 / 32 / 33 dB / RA1 = 24, 31 dB |
| Materials / finish | Anodized aluminum / Aluminum RAL |
| Glass | RW [dB] | C [dB] | RA1 [dB] | RA1R [dB] |
|---|---|---|---|---|
| ESG 8 (without drop-down seal) | 24 | 0 | 24 | 22 |
| ESG 8 | 32 | -1 | 31 | 29 |
| ESG 10 | 33 | -2 | 31 | 29 |
| Glass | RW [dB] | C [dB] | RA1 [dB] | RA1R [dB] |
|---|---|---|---|---|
| ESG 10 | 33 | -2 | 31 | 29 |
| test | test |
|---|---|
| test | test |
Alu E2/C-0 silver anod.
Alu E2/C-35 black anod.
Alu E2 inox anod. polished
Alu RAL/special anod.
Alu RAL
Alu E2/C-0 silver anod.
Alu E2/C-35 black anod.
Alu E2 inox anod. polished
Alu RAL/special anod.
Alu RAL
Characteristics

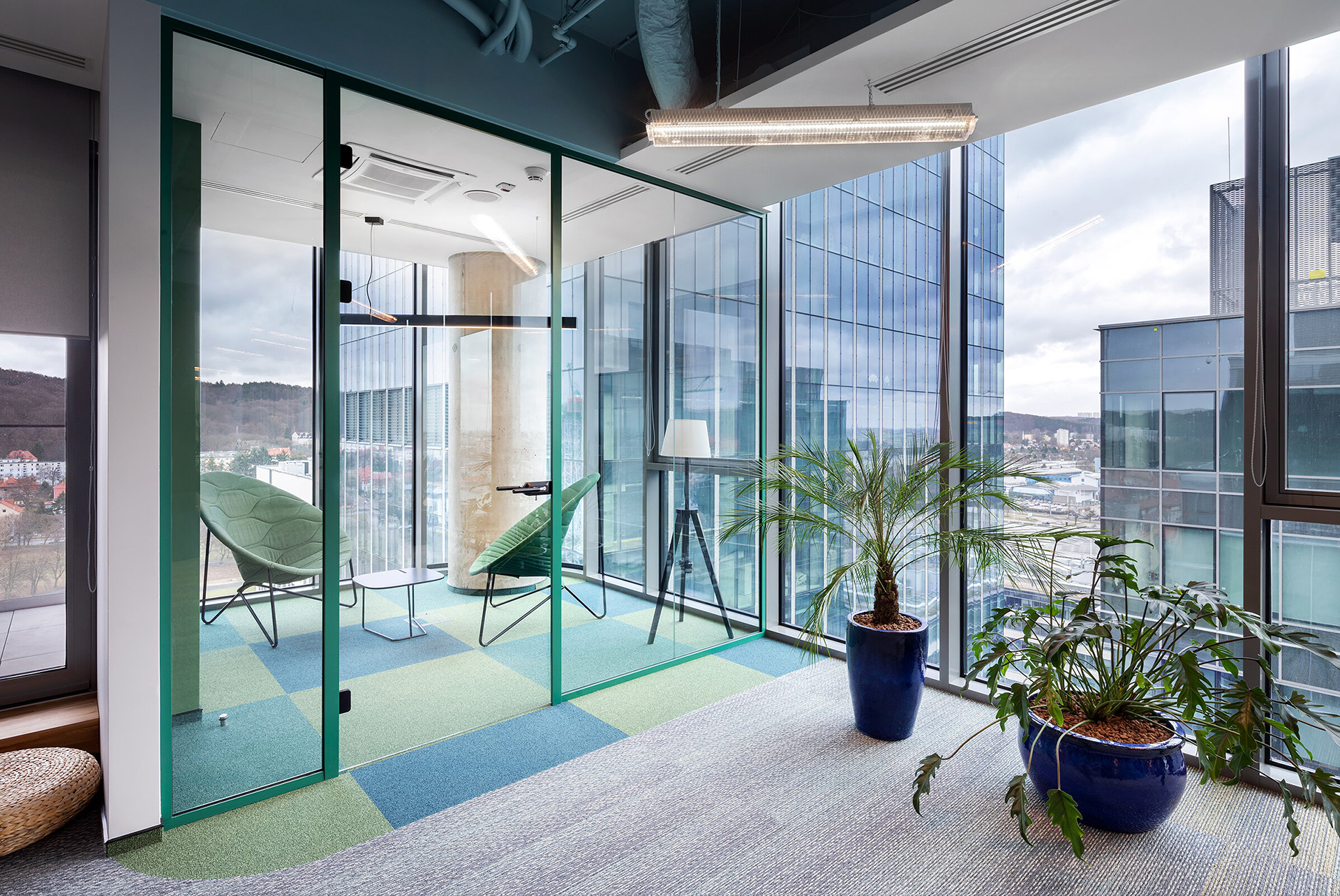

Glass doors can be installed in any type of GSW Office frame – in single and double glazed glass walls as well as in brick walls and plasterboards.
The system provides for the possibility of using a drop-down seal, which seals the threshold space when the door is closed. The profile mounted on the lower edge of the leaf corresponds to the dimensions of the profile fixing the fixed glazing. The solution is based on the technology of the Planet company
