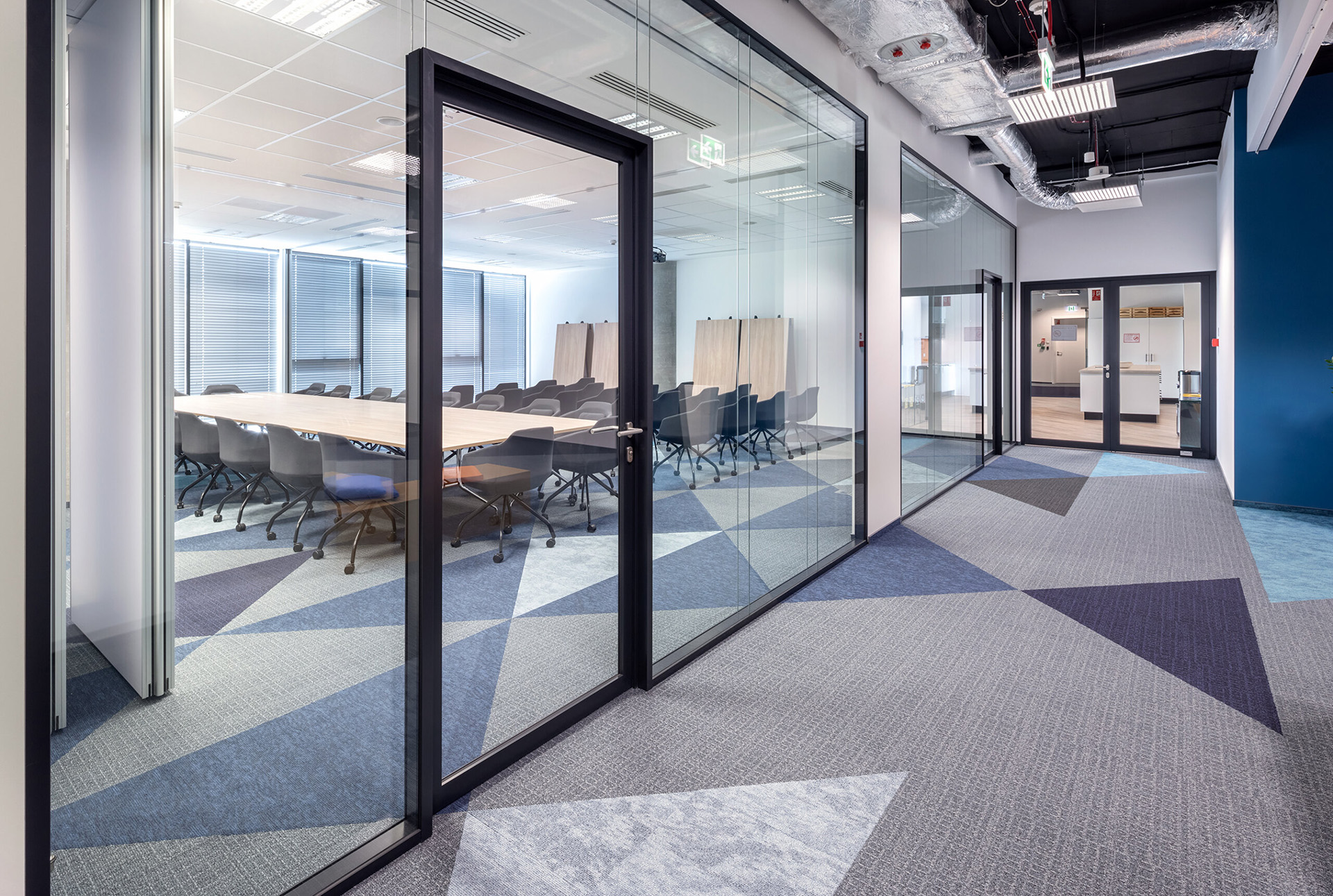

Urban Slim Door
Minimalist design of glass doors in an aluminum frame
Created for projects featuring light designs. They achieve high sound insulation parameters thanks to the possibility of using acoustic glass.
Acoustic insulation Rw from 35 dB to 39 dB
Full visual and systemic compatibility of GSW Office
Download the product card
Select the product version
Urban Slim
Product features
| Approvals, tests etc. |
|
| Durability | Class 6 |
| Type of glass | VSG 44.1, 44.2, 55.1, 55.2 |
| Max door height (mm) | 2850 |
| Max door width (mm) | 1080 |
| Acoustic insulation | RW = 35 ÷ 39 dB / RA1 = 34 ÷ 38 dB |
| Smoke tightness | on request |
| Materials / finish | Anodized aluminum / Aluminum RAL |
| Glass | RW [dB] | C [dB] | RA1 [dB] | RA1 R |
|---|---|---|---|---|
| VSG 44.1 | 35 | -1 | 34 | 32 |
| VSG 44.1 + IsoSound | 36 | -1 | 35 | 33 |
| VSG 44.2 Silence | 37 | 0 | 37 | 35 |
| VSG 44.2 Silence + IsoSound | 38 | -1 | 37 | 35 |
| VSG 55.1 + IsoSound | 37 | -1 | 36 | 34 |
| VSG 55.2 Silence + IsoSound | 39 | -1 | 38 | 36 |
| test | test |
|---|---|
| test | test |
Alu E2/C-0 silver anod.
Alu E2/C-35 black anod.
RAL 9005S
Alu E2 inox anod. polished
Alu RAL/special anod.
Alu RAL
Characteristics
Minimalistic glass door construction in an aluminum frame. It fits well in projects characterized by a light design. The use of a frame allows the use of laminated glass, including acoustic glass, thanks to which the door offers high airborne sound insulation.
